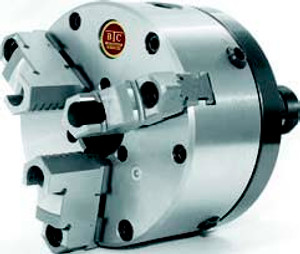

QU Industrial Zero Set 3 Jaw 5" Chuck w/ 3MT Mount - 1053R3MT

Brand:   QU Industrial
SKU:
1053R3MT
ID:
345810
Size 5"
O.A. Length 7.788
Mount 3MT
$1,095.00
Current Stock:
Adding to cart… The item has been added

QU Industrial

QU Industrial Zero Set 3 Jaw 5" Chuck with 3MT Mount

.0005" repeatability on duplicate parts. This accuracy is possible by having a clearance of .020" between the chuck cavity and the mounting plate hub. Opposing adjusting screws allow alignment to adjust work to "dead true" accuracy and repeatability on duplicate parts. With proper care QU Industrial® Chucks useful life is approximately 2.5 times longer than standard self centering scroll chucks.

SUPPLIED WITH:

  • Chuck - Hardend Scroll
  • Master Jaws & Top Jaws
  • T-Wrench
  • Mounting Screws

WORKHOLDING CAPACITIES AND MAXIMUM RPM LIMITS:

Size OD Min. OD Max ID Min. ID Max Max Rpm
5" 0.118 5.000 1.575 4.724 3500



PRINCIPAL SPECIFICATIONS:

SIZE WEIGHT D D1 D2 D3 H H1 h z-d
5"₂ 15 5.000 2.716 4.438 1.299 3.768 2.205 0.657 1/4-20

₂ Outer Mtg. Holes D2
