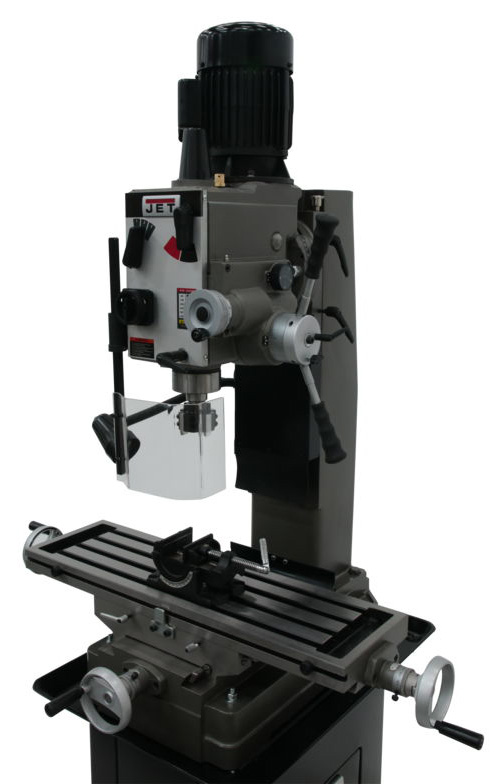

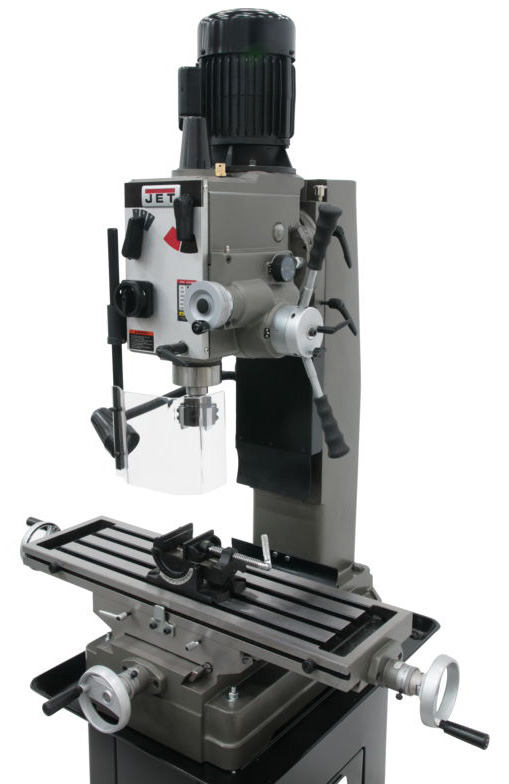

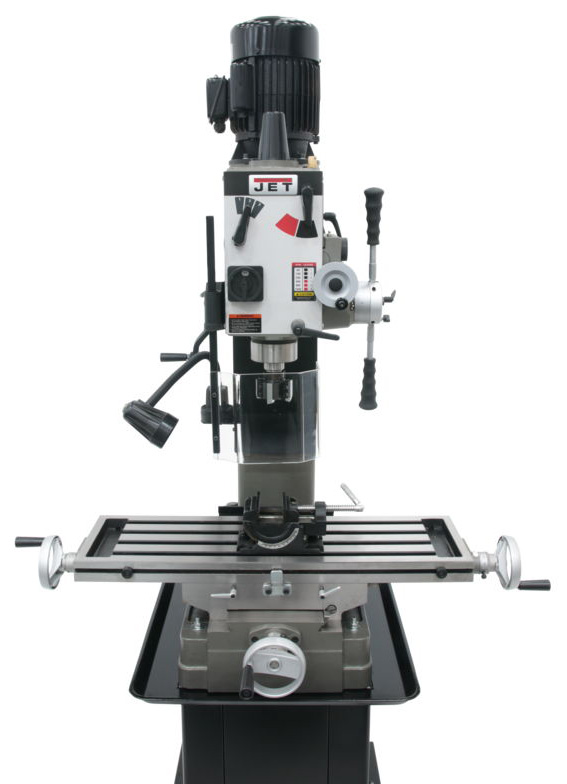

JET Geared Head Mill/Drill JMD-45VSPF, Variable Speed with Newall DP500 2-Axis DRO - 351162

Variable Speed Square Column Geared Head Mill/Drill


Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments.


Features:

  • Heavy-duty design allows for a variety of precision drilling applications
  • Full power to the cutting tools through Variable Speed geared head
  • Square column with dovetail ways
  • CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
  • Spindle guard
  • Work Lamp
  • Calibrated fine down feed built in
  • Easy to read internal depth gauge
  • Head tilts left & right 90º
  • Rapid spindle speed changes through quick-select gear shift levers
  • Forward/reverse switch
  • Power Downfeed standard
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling


Specifications:

Item Number 351162
Model JMD-45VSPF
DIGITAL READOUT NEWALL DP500 2-AXIS DRO
DRILLING CAPACITY 1-1/2"
FACE MILL CAPACITY 4"
END MILL CAPACITY 3/4"
SWING 19-11/16"
MAX DISTANCE SPINDLE TO TABLE 18-1/8"
SPINDLE TAPER (IN. X TPI) R8
SPINDLE TRAVEL 5"
SPINDLE TRAVEL AUTO 4-1/4"
QUILL DIAMETER 3"
COLUMN DIAMETER 7-7/8" x 7-5/8" SQUARE
NUMBER OF SPINDLE SPEEDS VARIABLE SPEED
RANGE OF SPINDLE SPEEDS (RPM) 50-2500
TABLE SIZE (L X W) 9-1/2" x 32-1/4"
TABLE LONGITUDINAL TRAVEL 20-1/2"
BASE DIMENSIONS 26-11/16" x 15-15/16"
OVERALL DIMENSIONS (L X W X H) 29" x 36" x 50"
MOTOR (HP) 1-1/2HP, 115/230V, 1PH
WEIGHT 827 lbs.

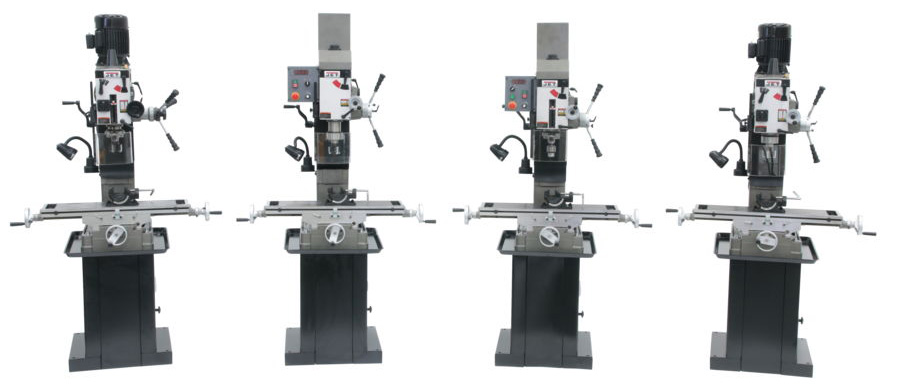

See all JET Geared Head Mill/Drills
