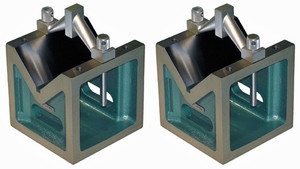

Taft-Peirce Open Body Cast Iron V-Blocks (Pair), 8" - 9134-M

Brand:   Suburban Tool Inc.-Taft Peirce Metrology
SKU:
9134-M
ID:
324750
$3,627.05
Current Stock:
Adding to cart… The item has been added

Suburban Tool

Open Body Cast Iron V-Blocks (Pair), 8" - 9134-M

  • Made from class 35-40 cast iron
  • Sides and ends of each v-block have a full outline bearing area
  • Convenient ledges allow for clamping in any position to machine tables and inspection plates
  • Features "open" body design to reduce weight, and heavy ribbing for added strength
  • Both sizes can be furnished in pairs matched within 0.0005" and numbered for identification
  • Each block is provided with one clamp and two clamping screws
  • Clamps do not interfere, when vee blocks are used on sides or ends, and may be swung aside or removed entirely


Specifications:

MODEL # 9134-M
SINGLE or PAIR PAIR
LENGTH 8"
WIDTH 8"
HEIGHT 8"
VEE CAPACITY 6-3/8"
VEE CENTRAL, SQUARE & PARALLEL 0.0005"
SIDES SQUARE & PARALLEL 0.0005"
WT (#) 104



See all Taft Peirce Open Body Cast Iron V-Blocks
