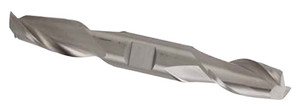

Atrax 2-Flute Centercutting Double End Mills

Brand:   Atrax
ID:
109946
Current Stock:

Atrax

Atrax 2-Flute Centercutting Double End Mills


Solid Micrograin Carbide Stub and Regular Lengths


Features and Benefits:

  • All end mills are centercutting allowing for 3 axis capability of plunging, ramping and profile milling
  • Two flute end mills are excellent for deep slotting application and also for use on aluminum and nonferrous materials
  • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
  • Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
  • Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Tolerances: Size Tolerance
Shank Dia. All Sizes +.000/-.0005"
Cutting Dia. 1/64 - 1/4" +.000/-.002"
9/32 - 3/4" +.000/-.003"



Enter any Item Number into the search box to see additional specifications.
