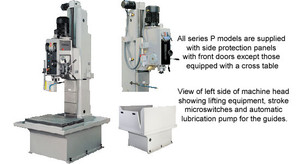

The P series Industrial Drilling Machines are built with a extra heavy-duty base and worktable to handle large and heavy work pieces.
Standard Features and Equipment:
-
Drilling capacity in steel: 2.75" (70mm) maximum
-
Drilling capacity in cast iron: 3.14" (80mm) maximum
-
Tapping capacity in steel: 2.51" (64mm) maximum
-
Tapping capacity in cast iron: 2.68" (68mm) maximum
-
Automatic feed reversing system for tapping on “RS” models
-
Adjustable of vertical position of head by geared-motor
-
Large worktable with 3 T-slots
-
Hardened and ground high quality steel gears
-
Gear box lubrication by automatic pump
-
Guide ways lubricated by manual pump
-
Speed plate and selecting levers on front of head
-
Coolant tank and pump in machine base
-
Automatic feed and cut-off by electromagetic clutch
-
Work light
-
Front hand wheel for fine feed work
-
Depth scale and adjustable depth stop
-
Built-in low voltage electrical equipment in column rear
-
Emergency STOP
-
Automatic tool ejector
-
Forward and reverse turn push buttons
-
Drill guard with microswitch
-
Automatic pitch control tapping with single speed brake motor
-
Automatic pitch control tapping with pneumatic rapid approach
-
Master guide spindle and nut set for automatic pitch control tapping
-
Pneumatic counterbalance with rapid approach and retract
-
Pneumatic counterbalance with rapid approach and retract for tube and profile drilling
-
Pneumatic counterbalance with rapid approach and retract with pitch controlled tapping
-
50% lower feed range
-
Mechanical spotface device
-
Pneumatic counterbalance
-
Multi-spindle head guide rod
-
Union, dragging cone and assembly for multi-spindle head
-
START-STOP and emergency STOP pendent control
-
Pendant control panel with all functions
-
Cross slide table
-
ISO-40 spindle with quick change nut (models BP-40, 50, 70)
-
ISO-50 spindle with quick change nut (models BP-70 only)
