DeFelsko PosiTector BHI Barcol Hardness Impressor

Brand:   Defelsko
ID:
329424
Call for Pricing
Current Stock:

Defelsko

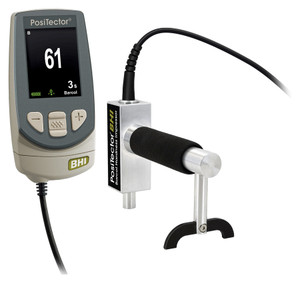

DeFelsko PosiTector BHI Barcol Hardness Impressor


Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic.


Features:

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • Lightweight, portable device can be used in any orientation
  • User-adjustable measurement time with onscreen countdown
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • Field replaceable indentor with replacement tool (included)
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Includes PosiSoft suite of software for viewing and reporting data
  • Hard-shell carrying case


Simple:

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • User-adjustable measurement time with onscreen countdown
  • Includes spare, field replaceable indentor with replacement tool
  • Lightweight, portable device can be used in any orientation
  • RESET feature instantly restores factory settings


Accurate:

  • Long Form Certificate of Calibration included
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
  • Conforms to national and international standards including ASTM


Powerful:

  • Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring
  • Screen Capture - save screen images for record keeping and review
    PosiTector users can capture and save an image copy of the current gage display by simultaneously pressing both the (-) and (+) buttons. The last 10 screen captures are stored in memory and can be accessed within the PosiSoft USB Drive.
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Software Updates via web keep your gage current
  • Software Solutions for viewing, analyzing and reporting data
  • Every stored measurement is date and time stamped


Durable:

  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Shock-absorbing, protective rubber holster with belt clip
  • Hard-shell carrying case included
  • Two year warranty on gage body AND probe


Versatile:

  • PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
  • 1 and 2 point calibration options with Cal Reset to restore factory settings
  • Selectable display languages
  • High contrast LCD with backlit display
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

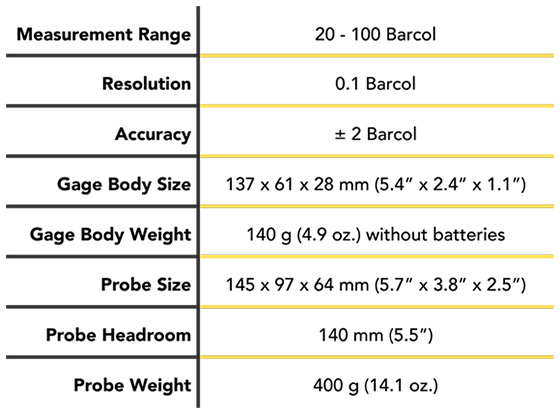

Specifications:

Click to View Instruction Manual


All gages come complete with: test disks (2), glass plate, protective rubber holster with belt clip, wrist strap, 3 AAA batteries, instructions, hard shell carrying case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.


Standard Gage Body Models:

Includes ALL features as shown above plus...

  • Storage of 250 readings per probe - stored readings can be viewed or downloaded


Advanced Gage Body Models:

Includes ALL features as shown above plus...

  • Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Auto Sub-Batch - automatically create sub-batches after the required number of readings are taken
  • Live graphing of measurement data
  • Batch/Reading annotation - add notes and change batch names with on-screen QWERTY keyboard
  • Store thickness, profile, environmental, salt contamination, hardness and wall thickness measurements in individual batches
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
