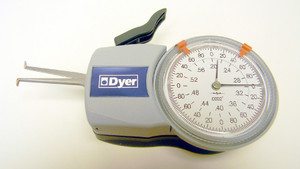

Dyer 103 Series Direct Reading O-Ring/Groove Gage, 0.2 - 0.6" Range - 103-101

Brand:   DyerGage
SKU:
103-101
ID:
337231
$849.95
Current Stock:
Adding to cart… The item has been added

Dyer Gage

Dyer 103 Series Direct Reading O-Ring/Groove Gage, 0.2 - 0.6" Range - 103-101

  • Easy to use; the gage arms retract to enter the smaller bore, then open into groove diameter
  • Direct reading
  • Customized standards in 1-2 days
  • Fast, accurate, repeatable measurements
  • Large, easy-to-read graduations, gage uses a 2-pointer system.


Maximum Measuring Accuracy:

  • Linear less than or equal to 0.0002 inch
  • Repeatability less than or equal to 0.0002 inch (0.013 mm )
  • Gage R & R capable


Specifications:

Type O-Ring/Groove Gaging
Gages by Industry Rubber
Measuring Range 0.2 to 0.6 Inch
Contact Travel .04 Inch
Reach of Arms Dim L 1.37 Inch
Max. Depth Groove Dim A 0.098 Inch
Min. Width Groove Dim B 0.070 Inch
Carbide Ball Contact Standard 0.024 Inch
Graduation/Resolution 0.0002 Inch

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
