Kent SGS-3468AHD Automatic Surface Grinder, 34" x 68" working capacity - SGS-3468AHD

Brand:   Kent USA
SKU:
SGS-3468AHD
ID:
317030
Call for Pricing
Current Stock:

Call for Pricing

Kent USA

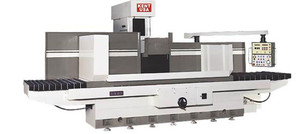

Kent SGS-3468AHD Automatic Surface Grinder, 34" x 68" working capacity


Features:

  • 34" x 68" working capacity
  • 3 axis automatic movement
  • Precision turcite ways
  • Double-vee column cross traverse
  • NC Z-axis w/ servo motor and ball screw
  • Hydraulic table & electronic crossfeed
  • Automatic lubricator & rapid elevation


Standard Accessories:

  • Grinding wheel
  • Wheel Flange
  • Wheel balancing base
  • Wheel balancing arbor
  • Diamond table dresser base & tip
  • Magnetic separator & paper filter coolant
  • Hydraulic overhead parallel dresser
  • NC Z-axis controller
  • Toolbox with tools


Optional Accessories:

  • DRO system
  • Fine pole electric chuck & control
  • Interloc w/ control
  • Extra wheel flange
  • Static wheel balancing
  • Rustlick coolant


Specifications:

Model SGS-3468AHD
Table Travel 70.25"
Saddle Travel 35.4"
Working Capacity 33.25" x 67.25"
T-Slot 3 x 9/16"
Spindle Motor 15 HP
Spindle Speed 1150 RPM
Grinding Wheel 20" x 2" x 8"
Vertical Graduation 0.0005"
Vertical Revolution 0.050"
Auto Downfeed Increment 0.0001" to 0.0333" Per Pass
Spindle to Table 37.7"
Net Weight 22000 lbs.
Gross Weight 22900 lbs.
