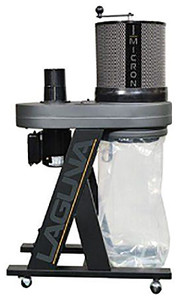

Laguna B|FLUX Dust Collector - MDCBF1110C1M

The most beautiful single stage dust collector to hit the market in years. Sleek design and power to match. No more fumbling with a steel band to mount your lower bag, the b|flux comes with a patented Snap-Band that makes changing the bag a breeze. Unlike most 1HP units the b|flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow & can swivel 180° to make the 4″ outlet face downwards.

The b|flux comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns & features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents clogging of the filter.

  • Motor HP: 1HP
  • Phase: 1
  • Voltage: 110v
  • Amps: 8.4 Amps
  • Hertz: 60
  • Plug: Yes
  • RPM: 3450
  • Switch type: Motor mounted direct switch
  • Hand held remote control: None
  • Shop Setting CFM*: 550
  • Inlet CFM: 650
  • Max Static Pressure (inches of water): 4.86″
  • Impeller/Fan Size: 9″
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 4″ x 1 ports
  • Drum collection bag (Dia. x L): Plastic bag (Ø350 x 980mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: Ø360mm (14.2″)
  • Cansiter length: 300mm (11.8″)
  • Filter Surface Area: 1.6m²/17.2ft²
  • Canister cleaning: Manual Handle crank. 270 degrees
  • Wheels: 2″ Ball Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 76 d B(A) (@9.8ft)
  • Machine weight: 32kgs/71Lbs
  • Shipping weight: 35kgs/77Lbs
  • Assembled Dimensions (L x W x H): 29″ x 14.8″ x 50.4″
