14" (356mm) Screen Diameter Optical Comparator with Linear Scales
QM-DATA 200 Measurement function-point, line, radius, circle,angle(vertex point),distance min./max. dist. between features, form information, data cloud, rotary axis, incremental/absolute, intersections, constructions, create, preset, forward/backward annotation, feature stamp, geometric tolerancing, measure.
KA Counter Bolt hole circle calculation,Diameter display and tool off sets (parameter mode), Preset, Memory compensation value, Selecting coordinates 0 to 10, Zero approach machining, Pitch approach machining, 1/2 calculation, MM/Inch.

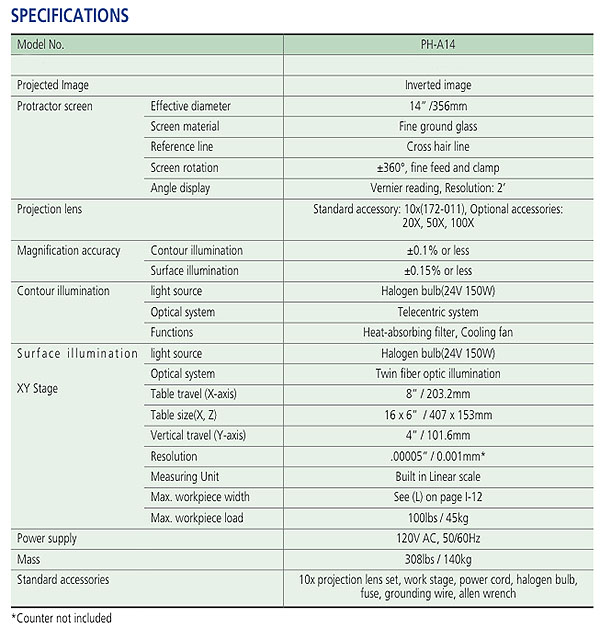

|Projected Image||Inverted image|
|Protractor Screen||Effective diameter: 14” / 356mm
Screen material: Fine ground glass
Reference line: Cross hair line
Screen rotation: ±360°, fine feed and clamp
Angle display: Vernier reading, Resolution: 2’
|Projection lens||Standard accessory: 10x(172-011)
|Magnification accuracy||Contour illumination: ±0.1% or less
Surface illumination: ±0.15% or less
|Contour illumination||Light source: Halogen bulb (24V 150W)
Optical system: Telecentric system
Functions:Heat-absorbing filter, Cooling fan
|Surface illumination||Light source: Halogen bulb(24V 150W)
Functions:Twinfiber optic illumination
|XY Stage||Table travel: (X-axis) 8”/203.2mm
Table size: (X, Z) 16”x 6” / 407x153mm
Vertical travel: (Y-axis) 4” / 101.6mm
Measuring Unit: Built in Linear scale
Max. workpiece load: 100lbs/45kg
|Power Supply||120V AC, 50/60Hz|
|Standard accessories||10x projection lens set, work stage
power cord, halogen bulb, tube fuse, grounding wire, allen key, cap
