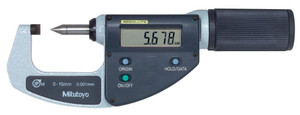

Mitutoyo Crimp Height Type Digital Quickmike Type Micrometer, 0-15mm - 342-451

Brand:   Mitutoyo
SKU:
342-451
ID:
336497
Type Digital Quickmike
Range 0 - 15 mm
Accuracy ±3µm
callling
$1,150.00
Current Stock:
Adding to cart… The item has been added

Mitutoyo

Mitutoyo Crimp Height Type Digital Quickmike Type Micrometer, 0-15mm - 342-451

  • IP54/65 water/dust protection(Series 342)
  • Measures the height of crimp contacts
  • With Ratchet Stop for constant force
  • With SPC output(Series 342)
  • Supplied in fitted plastic case


Technical Data:

Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Resolution: 0.001mm or .00005"/0.001mm
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.2 years under normal use (3 years: Quickmike type)
Dust/Water protection level: IP65

Function of Digital Model: Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error


Optional Accessories for Digital Model:

  • 05CZA662: SPC cable with data switch (1m / 40")
  • 05CZA663: SPC cable with data switch (2m / 80")
  • 937387: SPC cable for Quickmike type (1m / 40")
  • 965013: SPC cable for Quickmike type (2m / 80")



See all Mitutoyo Crimp Height Type Micrometers
