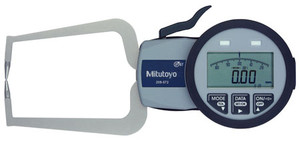

Mitutoyo Digimatic Caliper Gages Series 209

External Tube Thickness Measurement Type

Features:

  • Versatile OD measuring gages for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions.
  • The Digimatic Caliper Gages provide error-free LCD readings as well as data output for SPC analysis.

Technical Data:

  • Accuracy: Refer to the list of specifications.
  • Resolution: .001”, .0005”, or .0002” 0.01mm, 0.02mm, or 0.005mm
  • Display: Analog / Digital Power Supply: AA Battery (1pc)
  • Battery life: Approx. 350 hours
  • Measuring Force: 0.5 - 1.5N
  • Dust/Water protection level: IP63 Provided with inspection certificate.
  • Function: Zeroset, Preset, Auto power OFF, Inch/Metric conversion, Data hold, Max/Min value holding, Data output
    * Contact type 3,4 does not have max. min. value hold.

Specifications:

Order No. Range Resolution Accuracy Max.
Measuring
Depth L
Type of
Measuring
Contact
/type of set up
Measuring
Contact
Length Hb
Measuring
Contact
Length Hf
Mass
209-570 0 - 0.39"
0 - 10mm
.0002"
0.0005mm
.0008"
0.05mm
1.37"
35mm
Ball .059" /
1.5mm dia.
Both / A
.75"
19.1mm
.73"
18.6mm
240g
209-571 0 - 0.39"
0 - 10mm
.0002"
0.0005mm
.0004"
0.01mm
1.37"
35mm
Disc .24" /
6mm dia.
Both / C
.85"
21.7mm
.58"
14.8mm
175g
209-572 0 - 0.78"
0 - 20mm
.0005"
0.01mm
.001"
0.02mm
3.2"
80mm
Ball .059" /
1.5mm dia.
Both / A
.97"
24.7mm
.97"
24.6mm
280g
209-573 0 - 0.78"
0 - 20mm
.0005"
0.01mm
.001"
0.02mm
3.2"
80mm
Ball .059" /
1.5mm dia.
Both / B
.97"
24.7mm
.10"
2.5mm
270g
209-913 0 - 1.18"
0 - 30mm
.001"
0.02mm
.002"
0.04mm
4.5"
114mm
Ball .12" /
3mm dia.
Both / A
1.17"
30mm
1.17"
30mm
430g
209-914 0 - 1.18"
0 - 30mm
.001"
0.02mm
.002"
0.04mm
4.56"
116mm
Ball .12" /
3mm dia.
Both / B
1.17"
30mm
.16"
4mm
410g
209-915 0 - 1.18"
0 - 30mm
.001"
0.02mm
.002"
0.04mm
4.56"
116mm
Disc 1.97" /
50mm dia.
Both / D
1.42
36mm
.94"
24mm
430g
209-918 0 - 1.97"
0 - 50mm
.001"
0.02mm
.002"
0.04mm
6.57"
167mm
Ball .12" /
3mm dia.
Both / A
1.17"
30mm
1.17"
30mm
490g
209-919 0 - 1.97"
0 - 50mm
.001"
0.02mm
.0024"
0.06mm
6.57"
167mm
Ball .12" /
3mm dia.
Both / B
1.17"
30mm
.18"
4.6mm
460g
209-920 0 - 1.97"
0 - 50mm
.001"
0.02mm
.003"
0.08mm
6.57"
167mm
Disc 1.97" /
50mm dia.
Both / D
1.42"
36mm
.94"
24mm
500g
