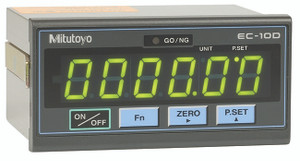

Mitutoyo EC Counter Series 542, Assembly Type Display Unit - 542-007A
Brand: Mitutoyo- SKU:
- 542-007A
- ID:
- 100417
$399.00
Mitutoyo EC Counter Series 542, Assembly Type Display Unit - 542-007A
Simple Display for LGD, LGS, or other Digimatic Gages, Go/NG Judgment and Output
Features:
- Produces 3-step/5-step, 3 types of tolerance output and BCD output.
- Employs DIN size (96×48mm) and mounton-panel configuration to facilitate system integration.
Technical Data:
- Applicable gage: LGD, LGS, All SPC output gages
- Resolution: .00005"/.0001"/0.001mm,.0005"/.001"/0.01mm
- No. of gage input: 1
- Display: 6-digit LED and a negative [-] sign
- Function: Preset
- Output (open-collector):3-step limit signal, Normal signal
- External control: Preset, Data hold
- Power supply: Via AC adaptor
- Dimensions (W x D x H): 96 x 48 x 84.6mm
- Standard accessories: AC adapter No.06AEG302JA
- Mass: 50g
Optional Accessories:
- Connecting cable for digimatic mini-processor:No.936937 (1m), No.965014 (2m)
- DC plug PJ-2: No.214938
- I/O cable (2m): No.C162-155
Specifications:
| Order No | 542-007A |
| Model | EC-101D |
| Applicable head/input | LGD,LGS,ID,SD, Digimatic code (SPC) |
| Resolution | 0.01mm (±9999.99)/.0005" (±99.9995") / .001" (±999.999") 0.001mm (±9999.999) / .00005" (±9.99995") / .0001" (±99.999") [automatic setting by gage] |
| Number of gage input | 1 |
| Display | Sign plus 6 digits (Green LED) |
| Tolerance judgment display | LED display (3 steps: Amber, Green, Red) |
