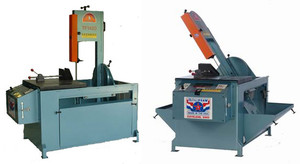

Roll-In Saw Vertical Tilt-Frame Band Saw TF1420
Roll-In Saw’s Model TF1420 Provides Tilt-Frame Versatility for all Types of Jobs
A vertical bandsaw that combines large capacity with versatility – and can accommodate small and large work in nominal settings as well as at variable angles (0 to 45°) left or right: the TF1420 can’t be beat.
Roll-In’s Tilt Frame Bandsaw can do all the operations our EF1459 Model can do, plus offering the advantage of mitering simply by tilting the frame without having to remove the work.
The TF1420 has the power, speed control, and feed pressure required to ensure maximum accuracy and efficiency. This saw requires no extra training to master. It is easier to operate, equal to any task, and is less expensive than the comparable saws in its class.
Simple to operate, the TF1420 is a rugged machine built for many trouble-free years of service.
| Technical Data | |
| Capacity Under Guides | 20" Under guides @ 90° |
| Throat | 14" Throat 14" x 13" @ 45° |
| Blade Travel | 14" into work |
| Blade Size | 1" Width x 12' 11" Length .035 Thick (bi-metal) |
| Blade Guard | Blade guard moves up and down with guide bar to ensure operator safety when cutting |
| Blade Speeds | 70 to 400 sfpm digital speed control with LCD readout |
| Table | Precision ground 31 1/2" x 25 1/2" |
| Table Height | 37" from floor |
| Feed System | Infinitely adjustable air over hydraulic cylinder for feed control from 0 to 175 lbs. |
| Wheels | 14" Cast iron wheels |
| Motor | 2HP 220/440V three-phase (TEFC) |
| Dimensions | 60" Width x 80" Height x 66" Length |
| Shipping Weight | 1,400 lbs. F.O.B. Cleveland, Ohio |
Special Features:
- Quick action vise (can be moved to either side)
- Blade cleaning brush
- Coolant - blade misting system
