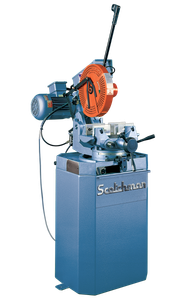

Scotchman Non Ferrous Manual Saw - CPO350NF

Brand:   Scotchman
SKU:
CPO350NF
ID:
107972
$9,309.25
Current Stock:
Adding to cart… The item has been added

Scotchman

Scotchman Non Ferrous Manual Saw CPO350NF


Standard Features:

  • Miter Capabilities 45 degrees Left and 45 degrees Right
  • Miter Locking Device: Quick, Accurate Settings-Stops at 45 degrees Left, Straight 90 degrees, and 45 degrees Right
  • Manual Double Self-Centering Vise Assures Burr-Free Cuts
  • Operator Controlled Trigger Switch
  • Capable of Slotting
  • 5 HP, 3,000 RPM
  • Positive Cog Belt Driven
  • Chip Drawer
  • One Gallon Coolant Tank with Mist Lubrication System
  • One 13-1/2" Diameter (338 mm) Carbide-Tipped Blade
  • One Blade Wrench
  • One Gallon Concentrated Coolant
  • 230 or 460 Volt /3 Phase Electrics (must specify voltage)
  • Warranty: Three Years
  • Made in USA
  • For Optional Standard Tooling please Contact Us

Capacities & Specifications:

Non-Ferrous machines designed for aluminum, plastic, copper, etc.
Cutting Speed 3,000 rpm
Motor Rate 5 HP
TUBING
Round
Square
Rectangle

SOLID
Round
Square
90 Degree
4-1/2"
4-1/4" x 4-1/4"
5-1/2" x 4"

90 Degree
3"
3" x 3"
45 Degree
4-1/4"
4" x 4"
4" x 4"

45 Degree
2-1/2"
2-1/2" x 2-1/2"
Factory Wired Specify
208 3 ph
230 3 ph
460 3 ph
575 3 ph 60 hz

Maximum Diameter Blade 14" 350 mm
Arbor Bore 1-9/16" 40 mm
Pin Spacing 4/12/64
Width 21-7/8"
Depth 43-1/2"
Height not including handle 56-1/4"
Height from floor to vise 37-7/16"
Shipping Weight 675 lbs.
