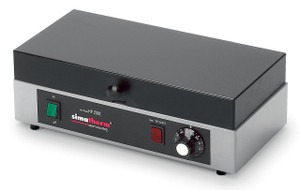

Simatec Simatherm Electric Hot Plate HPS, Small
Electric hot plate with thermostat controlled bearing heating
The electric heating plate HPS (small) and HPL (large) was especially designed for the heating of small work pieces.
The temperature of the heating plate can be adjusted by a turning knob in a range of 122-392°F (50-200°C).
Features:
- HPS for workpieces weighing up to 5kg (11 lb.)
- Plate surface (WxD) for HPS: 380 x 180mm (15 x 7.1 in)
- Also included: 1 pair of protective gloves
- Available for voltages of 100-115 and 230V
- Control range from 50 to 200°C (122 to 392°F)
About Simatherm Induction Heaters:
The best way to avoid unwanted stresses when assembling interference-fit parts is to heat the outer part just enough to produce a temporary clearance. Simatherm induction heaters allow this to be done precisely, evenly, quickly and efficiently. Other methods of heating are slower, less controlled and can cause more harm than good to bearings.
Advantages:
- Precise, even, quick heating
- There is no risk of damage (from excessive mechanical stress, open flames, dirty oil baths, excessively hot ovens and plates)
- Automatic demagnetization
- User friendly
- Increased operational safety
- Selectable power reduction for heating up smaller parts
Click to View More Information
Specifications:
| Type | Hot Plate HPS |
| Description | Heaters for small workpieces |
| Designation | HPS 200/230 V (Art. 110.1801) HPS 200/110 V (Art. 110.1802) |
| Voltage | 220-240 V 100-120 V |
| Frequency | 50-60 Hz 50-60 Hz |
| max. Amperage | 5 A 10 A |
| Power | 1000 W 1000 W |
| Max. weight of rolling bearing | 5kg (11 lbs.) |
| Temperature range | 50-200°C (122-392°F) |
| Accuracy (electronic) | ± 5 °C (41°F) |
| Maximum temperature (approx.) | 200 °C (392°F) |
| Size of operating area (W x H) | 380 x 180 mm (15" x 7.1") |
| Dimensions (L x W x H) | 390 x 190 x 150 mm (15.4" x 7.5" x 5.9") |
| Overall weight | 6 kg (13.2 lbs.) |
