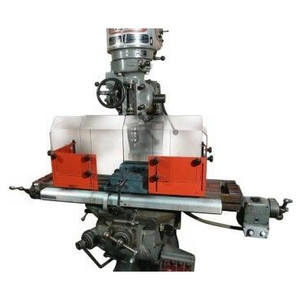

StrongHold Silvaflame MAX-A-JUST Milling Machine Guards M1 & M2
The MAX-A-JUST is made up of two half assemblies, each of a composite construction of nylon coated steel members carrying polycarbonate extension visors that can be adjusted in both vertical and horizontal plane, to clear protruding vices of jigs and fixtures.
The two half assemblies are mounted in opposition to form either a complete three-sided box or an extended line across the front of the machine table. When positioned, the release of the special locking devices enables the two half assembles to be opened to give rapid access to the workpiece or cutter.
- Total safety enclosure
- Total visual area protection
- Total versatile adjustment
- Polycarbonate visors
- When released, the guard can be hinged aside allowing instant access to the machine table
- Supplied with (2) M12 T-nuts (0.47")
- M1:
- Minimum Vertical Height: 7.75in / 200mm
- Maximum Vertical Height: 13.75in / 350mm
- Minimum Overall Length Enclosing: 14.75in / 375mm
- Maximum Overall Length Enclosing: 20.75in / 525mm
- Minimum Overall Length Extended: 27.50in / 700mm
- Maximum Overall Length Extended: 34.50in / 875mm
- M2:
- Minimum Vertical Height: 9.75in / 250mm
- Maximum Vertical Height: 17.75in / 450mm
- Minimum Overall Length Enclosing: 18.75in / 475mm
- Maximum Overall Length Enclosing: 31.50in / 800mm
- Minimum Overall Length Extended: 36.50in / 925mm
- Maximum Overall Length Extended: 49.25 / 1250mm
