TE-CO CMM Basic Fixturing Kits

CMM Fixturing Kits
Component kits can be purchased with or without purchasing a plate, and all CMM fixture components contained in the kits are also available individually. The Basic Kit, Comprehensive Kit, and Magnetic Component Pack all come with a wooden holder for convenient storage.
You can also build your own CMM Fixturing Kit. Call us for a quote at 800-526-4956

  • Designed for clamping non-magnetic parts
  • Use with plastic, aluminum and steel

Note: Can be combined with Magnetic Components Pack for added flexibility!

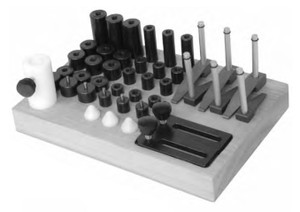

No. 14301 Contains:

14060 - Small Soft Touch Clamp - 3 pcs.
14064 - Large Soft Touch Clamp - 3 pcs.
14034 - Large Adjustable Positioner - 2 pcs.
14201 - Delrin Height Adjuster - 1 pcs.
14075 - Delrin Cones - 3 pcs.
14040 - 1/2" Dia. x 1/2" Height Pin Rest - 3 pcs.
14041 - 3/4" Dia. x 1/2" Height Pin Rest - 3 pcs.
14017 - 1/2" Dia. x 3/4" Height Standoff - 3 pcs.
14018 - 1/2" Dia. x 1" Height Standoff - 6 pcs.
14019 - 1/2" Dia. x 2" Height Standoff - 3 pcs.
14022 - 3/4" Dia. x 3/4" Height Standoff - 3 pcs.
14023 - 3/4" Dia. x 1" Height Standoff - 6 pcs.
14024 - 3/4" Dia. x 2" Height Standoff - 3 pcs.
40091 - Wooden Component Holder - 1 pcs.

No. 63301 Contains:

63060 - Small Soft Touch Clamp - 3 pcs.
63064 - Large Soft Touch Clamp - 3 pcs.
63034 - Large Adjustable Positioner - 2 pcs.
63201 - Delrin Height Adjuster - 1 pcs.
63075 - Delrin Cone - 3 pcs.
63040 - 13mm Dia. x 25mm Height Pin Rest - 3 pcs.
63041 - 19mm Dia. x 25mm Height Pin Rest - 3 pcs.
63017 - 13mm Dia. x 20mm Height Standoff - 3 pcs.
63018 - 13mm Dia. x 25mm Height Standoff - 6 pcs.
63019 - 13mm Dia. x 50mm Height Standoff - 3 pcs.
63022 - 19mm Dia. x 20mm Height Standoff - 3 pcs.
63023 - 19mm Dia. x 25mm Height Standoff - 6 pcs.
63024 - 19mm Dia. x 50mm Height Standoff - 3 pcs.
40089 - Wooden Component Holder - 1 pcs.
