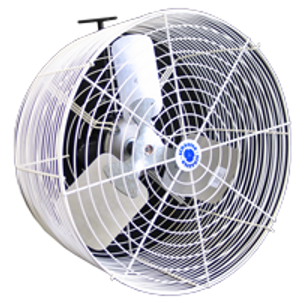

Versa-Kool 20" Deep Guard Circulation Fan - VK20
Brand: Schaefer Ventilation- SKU:
- VK20
- ID:
- 324339
$499.95
Versa-Kool 20" Deep Guard Circulation Fan - VK20
Reduce heat stress and improve air quality with Schaefer's uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don't hear them. You don't see them. You only feel them!
Also known as Horizontal Air Flow (HAF) fans, these fans move air in a coherent horizontal pattern creating a gentle 'racetrack' air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air, from ceiling to floor.
Features and Benefits:
- Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow
- Matched high quality motors and blades for maximum efficiency
- Powder coated steel guards for increased durability and corrosion resistance
- Hot dipped galvanized guards on VK12-GA and VK20-GA models for even greater rust protection
- Powder coated steel mounting bracket and power cord included
- Wide variety of mounting options available for flexible and easy installation
- Variable speed controls available
- Misting kits available for even greater cooling
- Two year warranty
- Made in the USA
Specifications:
| Item Number | VK20 |
| Air Velocity (@ 5 times diameter) | 1220 |
| BESS Lab Performance Test No. | 12371 |
| Blade Color | Metallic |
| Blade Material | Aluminum |
| CFM (free air) | 5470 |
| CFM Calculation Standard | ANSI/AMCA Standard 230-99 |
| CFM Range (Free Air) | 5001 - 10000 |
| CFM/Watt (free Air) | 15.6 |
| Component Certifications | Motor - UL/CSA |
| Cord | Included - Not Wired |
| Cord Length (feet) | 5 |
| Country of Origin | US |
| Diameter (inches) | 20 |
| Drive Type | Direct |
| Fixed or Portable | Fixed |
| Frequency (Hz) | 60 |
| Guard Color | White |
| Guard Material & Coating | Powder Coated Steel |
| Guard Spacing (inches) | 1/2 - 1 UL507 |
| Max RPM | 1725 |
| Mount Included | VS20FMT |
| Mount Type Included | Ceiling |
| Nameplate Amps | 3.8/1.9 |
| Number of Wings | 3 |
| Oscillating | No |
| Phase | 1 |
| Power (hp) | 1/3 |
| Product Color | White |
| Product Shipping Dimensions | 23 X 23 X 18 |
| Product Weight (pounds) | 37 |
| Speed Control Compatible | Yes |
| Speeds | 1 |
| Switch | Not included |
| VFD Compatible | No |
| Voltage | 115/230 |
| Able to Ship Small Parcel | Yes |
