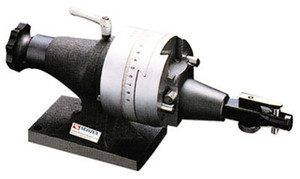

Vertex Radius & Angle Dresser

Brand:   Vertex Machinery and Tools
ID:
313310
Call for Pricing
Current Stock:


  • Positive setting of the diamond to absolute center with the special gage included with the dresser
  • Simple,fast,accurate radius setting; no height gage or other set-up aids required. Radius is set on the ginder by measuring over the two pins or by inserting a gage block,as shown, for direct reading. Inside or outside radius is determined simply by sliding the dowel pin to the right for concave and to the left for convex.
  • 4×90° gaduation in full 360° circle. 6 Minute vernier reading. Chrome plated.
  • One push-pull type knob for radius and angle control and for safer and faster operations.
  • ACCURACY. Exteremely close tolerances are held in the manufacture of this tool, assured by hardening and precision grinding of all critical parts. Ways are chrome hardened.
  • ECONOMY. Set-up and dressing time reduced to a bare minimum due to simplicity.
  • Made in Taiwan


Specifications:

  • Maximum Wheel Diameter Standard: 10"
  • Internal Radii: 5/8" - 1-5/8"
  • Extrenal Radii: 0 - 1-5/8"
  • Height from Base to Center: 4-3/32"
  • Tangent Travel, either side of center: 1-5/8"
