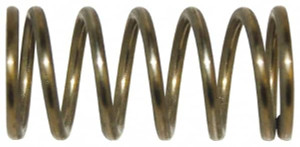

Gardner Spring 0.42" OD 1" Free Length Precision Compression Spring 25 Lb Spring Rating, 0.047" Wire, 15 Lb Max Workload, 0.377" Solid Height, Stainless Steel 36446GS - 00603381

Gardner Spring 0.42" OD 1" Free Length Precision Compression Spring 25 Lb Spring Rating, 0.047" Wire, 15 Lb Max Workload, 0.377" Solid Height, Stainless Steel 36446GS - 00603381

Brand:   Gardner Spring
SKU:
00603381
ID:
583601
UPC:
071515186503
callling
$4.13
Current Stock:
Adding to cart… The item has been added

Gardner Spring

Gardner Spring 0.42" OD 1" Free Length Precision Compression Spring 25 Lb Spring Rating, 0.047" Wire, 15 Lb Max Workload, 0.377" Solid Height, Stainless Steel

Manufacturer Part #: 36446GS

S/N: 00603381

UNSPSC: 31161904

UPC: 071515186503

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.4200in
Free Length (Inch)1in
Spring Rate21.7400in.lb
End TypeClosed, Ground
Maximum Work Load (N)59.92
Maximum Work Load (Lb.)15.0000
MaterialStainless Steel
FinishPlain
Wire Size (Decimal Inch)0.0469
Hole Diameter (Decimal Inch)0.4380
Spring TypePrecision
Solid Height (Decimal Inch)0.3770
Free Length (Decimal Inch)1.0000
ColorSilver
UNSPSC Code31161904
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
