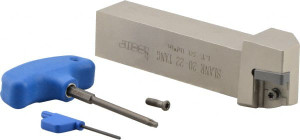

Iscar RH SLAN Negative Rake Indexable Turning Toolholder 1-1/4" x 1-1/4" Shank, Takes LNMX 2210 Inserts 3602553 - 06955058
Brand: Iscar- SKU:
- 06955058
- ID:
- 686748
$311.92
Iscar RH SLAN Negative Rake Indexable Turning Toolholder 1-1/4" x 1-1/4" Shank, Takes LNMX 2210 Inserts
Manufacturer Part #: 3602553
S/N: 06955058
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Toolholder Style | SLAN |
| Hand of Holder | Right Hand |
| Insert Compatibility | LNMX 2210 |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | LNMX221016R-HT |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Heliturn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.3800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | LNMX-HT |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | SLANR2022 |
