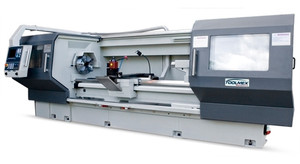

Toolmex TUR630AMN European Built Oil Country CNC Lathe 25" Swing - 630AMN-78
Features:
- 25" swing over bed x 78"
- New guarding package controls chips and coolant while protecting operator
- Siemens or Fanuc controls operate in Semi-Manual, Automatic Cycles or G-Code modes
- 16/25 HP main drive with CSS and 2-range autoshifting headstock
- 5.5" spindle bores with speeds up to 1850 RPM
- 17" wide TRI-V bed design
- New overhead independent swivel control station
- Up to 4,400 lbs bc
- Extended cross slide and saddle for stability and longer life
- Heavy-duty tailstock with 3.9" diameter quill, wrap around body and come-along
- Easy operator’s controls, 4-way rapids, Americanized electronics and absolute encoder
- New built-in hydraulic power system for optional hydraulic chucks, and steady rests or tailstock
- Wide range of options including power turrets, hydraulic chucks and steadies, C-axis with “live” tools, chip conveyor, nesting doors, 25/30 HP, etc.
Specifications:
| Capacity / Model | 25" TUR630AMN |
| Swing Over Bed | 24.8" |
| Swing Over Cross Slide | 14.6" |
| Distance Between Centers | 78" |
| Max. Workpiece Weight in Chuck | 1,320 lbs |
| Max. Workpiece Weight bc | 4,400 lbs |
| Max. Workpiece Weight bc with 2 Steadies | 6,600 lbs |
| Headstock | |
| 2-Range Autoshifting | Automatic |
| 5.5" Spindle Bore | 4-430 RPM and 200-1850 RPM |
| Spindle Nose, Std. 4.1" | D1-8 |
| Spindle Nose, 5.5" Bore | Dual D1-11 |
| Main Drive Power, Siemens | 16 HP Continuous / 25 HP at 40% Duty |
| Main Drive Power, Faunc | 15 HP Continuous / 21 HP at 60% Duty |
| Carriage | |
| Cross Slide Travel, X-axis | 15.3" |
| Rapid Travels, Z and X axes | 315 IPM |
| Feed Thrust, X / Z axes | 2,200 lbs / 3,300 lbs |
| Ball Screw Diameter, Z-axis, 78" - 118" (157") [236"] bc | 1.6" (40mm), 2.5" (63mm) [Rack & Pinion] |
| Ball Screw Diameter, X-axis | 1.26" (32mm) |
| Carriage Length Bearing on Ways | 24" |
| Cross Slide Width x Length | 9" x 31.5" |
| Tailsttock | |
| Quill Diameter | 3.9" |
| Quill Taper | MT5 |
| Quill Stroke | 7.8" |
| General | |
| TRI-V Bed, width | 17" |
| Machine Length | bc + 90" |
| Machine Weight, 118" bc | 13,000 lbs |
