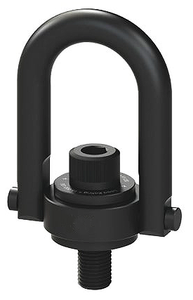

American Drill Safety Engineered Hoist Rings

  • Replaces conventional eyebolts for maximum lift in a wide variety of applications.
  • Perfect for large dies and fixtures, heavy machinery, mobile equipment, structural handling and cargo handling.
  • High Strength 4140 Alloy Steel.
  • 5:1 magnetic particle inspected per ASTM 1444.
  • Hoist rings retain same rated WLL from 0° to 90° from the bolt axis.
  • Standard tolerance + - .030" unless otherwise specified.
  • Black oxide for corrosion resistance, also available in cadmium, titanium-cadmium, nickel and other plating options.
  • Swivels 360°, pivot 180° under load.

Item No. A B D E F
99-025-302 0.43" 1-61/100" 3/8" 27/50" 2-67/100"
99-025-304 0.43" 1-61/100" 3/8" 27/50" 2-67/100"
99-025-306 0.70" 2-2/5" 1/2" 1-7/100" 3-77/100"
99-025-308 0.88" 3-1/4" 3/4" 39/50" 4-39/50"
99-025-310 0.88" 3-1/4" 3/4" 1-7/25" 4-39/50"
99-025-312 0.88" 3-1/4" 3/4" 39/50" 4-39/50"
99-025-316 0.88" 3-1/4" 3/4" 1-7/25" 4-39/50"
99-025-318 0.88" 3-1/4" 3/4" 1-3/100" 4-39/50"
99-025-321 0.88" 3-1/4" 3/4" 1-3/100" 6-18/25"
99-025-326 1.40" 4-93/100" 1" 1-29/100" 6-13/25"
