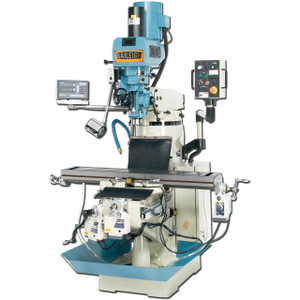

Baileigh VM-949-3 Vertical Knee Milling Machine, 9" x 49" Table, 220V 3-phase - BA9-1008236
When looking for a conventional vertical milling machine, Baileigh Industrial leads the pack in both quality and standard features. Baileigh Industrial's VM-949 knee milling machine is no exception and is great for any small to medium size machine shop or fabrication shop. Like all Baileigh machines, it's packed with tons of standard features that are options on most other brands.
The VM-949 knee milling machine features fully variable speed through the use of a Yaskawa® inverter drive. Speeds are adjustable from 60 to 4200 rpm. Adjustable spindle speeds help prolong tooling life as well as allows some applications that cannot be done on a standard drill press, such as thermal friction drilling. The VM-949 is available in two different voltages, 220 volt single and three-phase, these variances allow the VM-949 to be used in almost any shop.
Rigidity is also very important on a conventional vertical milling machine, that is why Baileigh Industrial went with only the best castings to make the base and framework out of. This is not the place to use an inferior process. To make the VM-949 knee milling machine even stronger, an NST-40 spindle is standard. This type of spindle is stronger and gives the operator a choice of larger tooling should the need arise.
Operation of the VM-949 could not be easier as this milling machine has powered X, Y, and Z-axis. The X and Y-axis utilize a Mitutoyo® DRO- digital read out for positioning down to 1/10 of a thousandth of an inch. Other standard features of the VM-949 milling machine include an air draw bar and a coolant system with a catch tray.
|Spindle Speeds||60 to 4200 RPM|
|Table Size||9" x 49"|
|Spindle Center To Column Min Max||8.38"|
|Spindle Feed Per Rev||.0015"/.003"/.005"|
|Spindle Head Swivel||45|
|Motor Spindle||3 hp|
|Travel Auto X Axis||25.19"|
|Travel Auto Y Axis||12"|
|Travel Auto Z Axis||16"|
|Travel Manual X Axis||28.5"|
|Travel Manual Y Axis||12"|
|Travel Manual Z Axis||16"|
|Spindle Nose To Table Min Max||2.24"|
|Table Load Capacity||440 lbs.|
|Cross Travel of Ram||12.59"|
|Power||220V / 3-phase|
|Shipping Weight||2400 lbs|
|Shipping Dimensions||72" x 72" x 78"|
