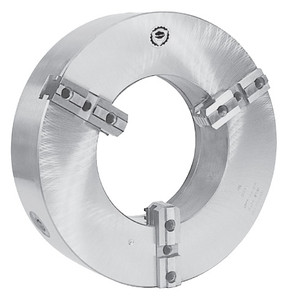

Bison 3295 3-Jaw Oil Country Chucks with Large Through-Hole
Brand: Bison- ID:
- 361697
Bison 3295 3-Jaw Oil Country Chucks
with Large Through-Hole
Self-Centering Scroll Chucks
Features:
- BISON OIL COUNTRY CHUCKS with large through-holes are designed for gripping long workpieces or pipes during machining
- Hardened and ground working surfaces
- High gripping force
- High accuracy
- Chucks can work individually or in pairs, mounted on opposite sides of the lathe spindle
Standard Accessories:
- 1 Set of soft top jaws
- 1 Set of hard master jaws
- 1 Wrench
Specifications:
Item Number | 7-819-1600 | 7-819-2000 | 7-819-2600 |
Type | 3295-16" | 3295-20" | 3295-26" |
A | 15.75" | 20.00" | 25.98" |
B | 4.13" | 4.72" | 5.31" |
C | 0.24" | 0.31" | 0.55" |
D | 14.25" | 18.19" | 22.83" |
E | 8.66" | 12.60" | 15.98" |
F | 15.00" | 18.96" | 24.41" |
M | 6xM12 | 6xM16 | 6xM16 |
W | 30° | 30° | 30° |
a | 4.72" | 4.72" | 5.00" |
b | 5/8"-11 | 3/4"-10 | 3/4"-10 |
c | 0.75" | 0.75" | 0.75" |
h | 0.50" | 0.50" | 0.50" |
d (Clamping Range) | 5.43 - 10.08" | 9.84 - 14.96" | 14.80 - 19.57" |
Max. RPM | 500 | 350 | 250 |
Weight | 127.21 lbs. | 167.11 lbs. | 284.18 lbs. |
View Specification Sheet
