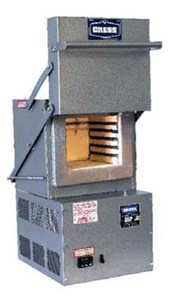

CRESS Industrial Furnace Model C601, Chrome Nickel Wire, Equipped w/ PM3T - C601-PM3T
Brand: CRESS- SKU:
- C601-PM3T
- ID:
- 110610
CRESS Industrial Furnace Model C601, Chrome Nickel Wire, Equipped w/ PM3T - C601-PM3T
Uses: These models are designed for those users who require automatic temperature controlled furnaces from 250° F to 2000° F (Model C-601) or up to 2250° F (Model C401H)
At A Low Cost: An ideal unit for many of the small jobs found in Tool rooms, Production Shops or Laboratory.
Temperature Control: Auto tuning microprocessor-based controller.
Elements: C-601 chrome nickel wire. C401H-high temperature iron-aluminum wire.
Wiring: furnace is completely wired and equipped with cord ready to plug into a 115 volt outlet. control, relay and wiring connections are enclosed on the base.
General construction: Furnace case of sheet steel is assembled by use of electrical welding and sheet metal screws. The spring counter-balance door rises vertically on lever arrangement keeping the hot face away from operator. The C401H walls and door are constructed of high quality insulating brick backed by 1800° F block insulation. Furnace is finished in heat resistant hammer tone gray.
Safety switch: These models come equipped with a door safety switch. when door is opened, power is disconnected from the heating element
Specifications:
| Model | C-601 |
| Chamber Size | 8.5" x 10" x 6.5" |
| Overall Size | 15.5" x 17" x 22" |
| Max. Intermittent Temperature | 2000 F |
| Max. Continuous Temperature | 1800 F |
| KW Input | 1.4 |
| Weight | 100 lbs. |
