DeFelsko PosiTector RTR 3D Replica Tape Reader

DeFelsko PosiTector RTR 3D

Replica Tape Reader to Measure and Record 2D/3D Surface Profile Parameters

The powerful new PosiTector® RTR 3D measures and records surface profile parameters using Testex Press-O-Film™ replica tape. Capture high-resolution 3D surface imagery and common 2D/3D parameters at a fraction of the cost of other instruments.

Features:

• Create a replica by burnishing tape on a surface and insert into instrument. 3D imagery and 2D/3D parameters are displayed in seconds!
• Reports common parameters: Ra, Rq, Rz, Rp, ­Rv, Rt, Rpc (2D), and Sa, Sq, Sz, Sp, Sv, and Spd (3D)
• Ideal for field or laboratory use; flat, curved or irregular surfaces
• Certified and traceable to an accredited national laboratory
• Download 3D .SDF image files for analysis in included PosiSoft or third party ­­­software

Click to see How It Works

Simple:

• Measures peak height (HL) and common 2D/3D profile parameters such as Ra, Rz, Sq, Spd and more
• High contrast, color LCD
• Enhanced one-handed menu navigation
• RESET feature instantly restores factory settings

Durable:

• Solvent, acid, oil, water and dust resistant - weatherproof
• Rugged indoor/outdoor instrument – ideal for field or laboratory use; flat, curved or irregular surfaces
• Shock-absorbing, protective rubber holster with belt clip
• Two year warranty on gage body AND probe

Accurate:

• Certificate of Calibration (containing Ra and Rt measurements) showing traceability to an accredited national laboratory included
• Conforms to national and international standards including ISO and ASTM

Versatile:

• Selectable display languages
• High contrast LCD with backlit display
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)
• Mils/Microns switchable

Powerful:

• Calculates and records all fourteen 2D and 3D parameters (below) with each measurement
• Screen Capture – save screen images for record keeping and review
• Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
• PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Every stored measurement is date and time stamped
• Software Solutions for viewing, analyzing & reporting data
• Apply short and long cutoff filters and discard lengths to optimize the analysis for a specific application
• Orient the 2D trace between horizontal, vertical and diagonal (XY, YX)

Standard Gage Body Model

Includes ALL features as shown above plus...

• Storage of 250 readings per probe - stored readings can be viewed or downloaded

Advanced Gage Body Model

Includes ALL features as shown above plus...

• Storage of 100,000 readings in up to 1,000 batches
• Live graphing of measurement data
• Download high resolution Surface Data Files (.SDF) for analysis in the included PosiSoft or third-party software
• Generates two dimensional (2D) and three dimensional (3D) thumbnail images Ideal for inclusion into reports and confirming consistent blasting results.
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard

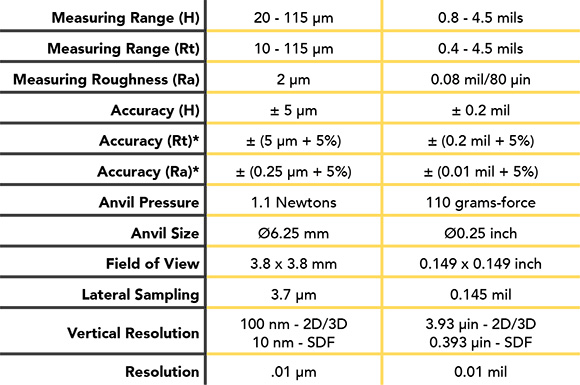

Specifications:

* When measured using Optical Grade X-Coarse Replica Tape

All gages come complete with stainless steel burnishing tool, burnishing ball, 5 cleaning cards, check shim(s), microfiber cleaning cloth, surface cleaning putty, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration (containing Ra and Rt values) traceable to an accredited national laboratory, USB cable, PosiSoft Software, two (2) year warranty on body and probe.
