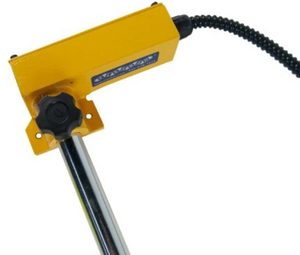

Flexbar ELECTRICAL INTERLOCKING MOUNTING BRACKET-STYLE 4 - 17004



Product Description

ID: 84560

Flexbar

Flexbar ELECTRICAL INTERLOCKING MOUNTING BRACKET-STYLE 4 - 17004

SKU: 17004
FLEXBAR E.I.M.B.
Electrical Interlocking Mounting Brackets
For use with all Flexbar Latheguards and Small Chuckguards
4 MODELS AVAILABLE TO SUIT INDIVIDUAL LATHE DESIGNS

Functioning: Once wired to motor-control circuit (motor starter), the cam-operated limit switch opens the contacts when the safety shield is tilted up . . . and the machine stops running.

SPECIFICATIONS
Limit Switch:

  • Roller-type
  • Roller and head are metal in sealed plastic housing
  • Electrical life - 1 million cycles
  • Mechanical life - 30 million cycles
  • NEMA 4 rated
  • Approvals: UL A300, UL E140497, CSA A 300 & CSA LR26716 M20
  • Snap acting SPDT INO-INC with double break ensures switch will open in event of minor contact welding
  • Contact block & roller head are modular hence replaceable without discarding entire device

    Electrical Conduit:

  • Extremely flexible and withstands repeated flexing
  • UL recognized - exceeds industry standards
  • Liquid tight vs. oil, water and most chemicals

    *Fittings:Inside is nylon with BUNA-N gland which seals the two each (2) 18 gage wires,plus a grounding wire.

    Included with each E.I.M.B. model:

  • Electrical Interlock Box with safety limit switch, wiring and mounting bracket with locking knob
  • Special Latheguard tube
  • Wiring diagram.

    Dimensions of rectangular box portion of E.I.M.B.:Approx. 6-5/8 X 2-3/8 X 1-5/8 inches (168mm x 60mm x 41.3mm)

    Model No. 17004, Top mounting for flat top of headstock. All Shield Sizes. Note: Observing the lathe structure and taking a few measurements makes proper selection easy.




Item Number: 17004
Brand: Flexbar
