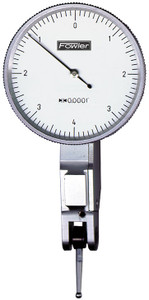

Fowler UltraTast Test Indicator - 52-568-022
Brand: Fowler High Precision| Reading | .0005" |
| Range | ±.015" |
| Dial Diameter | 1.083" |
| Stylus Length | 1.417" |
| Measuring Force | 0.07N |
$199.95
Fowler UltraTast Test Indicator Long Point 1.417" - 52-568-022
UltraTast Horizontal Test Indicator (stylus moves at right angle to dial)
- Box-type housing opens on one side only.
- Bottom and side walls are one piece construction which encloses and protects the movement from shocks and damage.
- Self-contained movement
- Jeweled movement bearings, precision gears and pinions for maximum sensitivity and accuracy
- Satin-chrome finish is corrosion proof
- Stylus: ball diameter .080"/2mm
- Swivel range 220° on all models
- Includes 1/4" & 5/16" Dovetail stem clamps
See all Fowler UltraTast Test Indicators
Click for Extra CARBIDE TIP CONTACT POINTS
Fowler UltraTast Test Indicator - 52-568-022
Fowler UltraTast Test Indicator - 52-568-022
