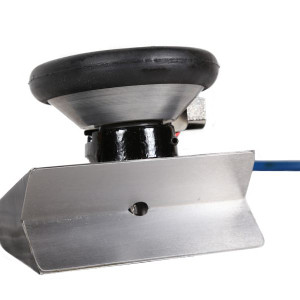

Heck Turbo-Burr® Pneumatic Deburring Tool
Perfect for deburring and edge finishing and nonferrous metals, plastics, stainless steel, aluminum, laminates, and printed circuit boards.
- Air turbine motor.
- Transports easily and conveniently to the work site.
- For use of a hand and a bench tool.
- Puts a safety edge on parts, at mill, saw or shear.
- Breaks sharp edges on parts, at mill, saw or shear.
- Deburrs one side.
- HTB-60S With closed bottom "V" Block
- Suitable for most applications
- HTB-60R With small gap at the bottom of the "V" Block
- Suitable for materials 0.135" and heavier, where large burrs are present.
Specifications:
- Rotation: 55,000 RPM (no load speed)
- Air Consumption: 5 to 11 CFM-lubrication not needed.
- Air Pressure: 60 to 120 PSI
- Air Hose: 1/4"
- Burr type: 1/4" diameter x 2" length overall-solid carbide.
- Depth of bevel: 0 to .075" at 45°
- Feed speeds: Up to 2" per second
- Weight: 3.5 lbs. (1.6kg)
