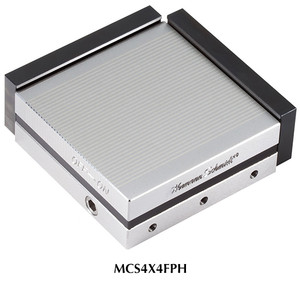

Hermann Schmidt Fine Pole Magnetic Chucks
Fine pole magnets maintain low magnetic penetration to the work piece.
This allows for superior holding on thinner pieces and sinker EDM operations to the magnet surface, without negative effects on operations.
- Rails included
- Ground within .0001″ or .0002" of nominal size of x – y – z location allowing for consistent work offsets over multiple chucks
- Flat, parallel and square within .0001″
- Low Magnetic Flux
- Completely Sealed
| Item No. | MCS4X4FPH | MCS6X6FPH | MCS6X12FPH | MCS8X8FPH | MCS12X12FPH |
| Length | 4" | 6" | 6" | 8" | 12" |
| Width | 4" | 6" | 12" | 8" | 12" |
| Height | 1-1/2" | 1-3/4" | 1-13/16" | 1-5/8" | 1-13/16" |
| Weight | 8 lbs. | 21 lbs. | 38 lbs. | 32 lbs. | 74 lbs. |
