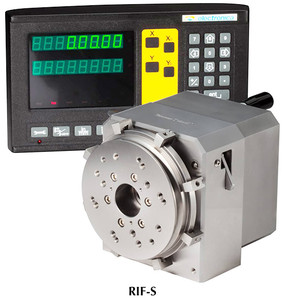

Hermann Schmidt Stainless Steel Rotary Index Fixtures
The stainless steel rotary spin and index fixture allows the setting of precise angles within 15 arc seconds. An internal encoder displays output in degrees, minutes and seconds or decimal. The unit is fully submersible and constructed with ceramic bearings.
Drive options include internal and external motors. Tooling options include EDM ground system, leveling head, v-block, 5C collet chuck, round magnetic chucks, precision chucks, and referencing systems.
Includes: 8 angle stops, workpiece stop & mahogany case
- Set precise angles within 15 arc seconds
- Fully submersible
- Up to 45 adjustable indexing positions
- Ceramic Bearings
- Flat, parallel & square within .0001″
- Readout in decimal or degrees, minutes, seconds
- Thru hole capacity : 1″
RIF-SINM-1800:
The internal motor allows for fully submerged rotation up to 1800 RPM. This is a direct drive, reversing motor internal to the RIF-S housing.
- Set precise angles within 6 arc seconds
- Internal Direct-Drive reversing motor 5-1,800 RPM
- Fully submersible stainless steel with ceramic bearings
- Up to 45 adjustable indexing positions
- Flat, parallel & square within .0001″
- Readout in decimal or degrees, minutes, seconds
- Thru hole capacity : 1″
Control Box Dimensions:
- Length: 16″
- Width: 9″
- Height: 11″
- Weight: 28 lbs.
- Input Voltage: 110V
| Item No. | RIF-S | RIF-SINM-1800 |
| Length | 6" | 6" |
| Width | 5" | 5" |
| Height | 5-3/4" | 5-3/4" |
| Weight | 35 lbs. | 60 lbs. |
