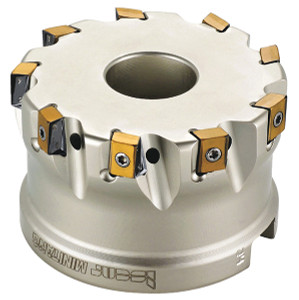

Iscar 90º Indexable Face Mill, Designation T490 FLN D2.50-6-1.0-R-13

Iscar 90º Indexable Face Mill, Designation T490 FLN D2.50-6-1.0-R-13

Brand:   Iscar
SKU:
19-215-048
ID:
371127
Use Socket Head SR UNF 1/2X20X1 B18.3
Travers Catalog Items yes
callling
$1,251.95
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 90º Indexable Face Mill, Designation T490 FLN D2.50-6-1.0-R-13

  • For Facing, Slotting, Shouldering
  • Holes for internal coolant supply
  • Right Hand.
  • Approach Angle: 90º
  • Maximum Depth of Cut ap: 0.492"
  • Accepts: LNAR1306 LNHT1306 LNMT1306
  • Use Insert: T490 LNMT1306
  • Use Torx Screw: SR 34-535
  • Use Torx Wrench: T-15


Cutting Dia. D Arbor Hole Dia. Da Cutter Height L Inserts
2.500" 1.000" 1.570" 6



For More Iscar T490 90º Indexable Face Mills Click Here
