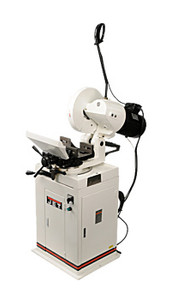

Jet Ferrous Manual Cold Saws
JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty.
Features:
- 350mm (14") Ferrous Cold Saw for steel, stainless and tough to cut alloys.
- Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
- Quick tension and release mitering capabilities with stops at 45° right, 45° left, and 90° (center), capable of slotting
- Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
- Hardened and ground worm screw and wheel drive gear box operates in an oil bath for added durability
- Double self centering vise with adjustable gibs secures the material for burr free cuts
- Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
- Thermal overload protection with magnetic starter for increased electrical safety
- Flood style coolant with flow control system extends blade life
- 30" adjustable length material stop
Specifications:
| Style (Type) | Ferrous |
| Blade Speeds (RPM) | 44, 88 |
| Blade Size (Mm.) | 350 x 32 x 2-1/2 |
| Maximum Vise Opening (In.) | 6 |
| Dimensions (L x W x H) (In.) | 50 x 28 x 60 |
| Weight(Lbs.) | 794 |
| Cutting Capacity Tubing (In.) | |
| Tubing Round at 90 Degrees (In.) | 4-1/2 |
| Tubing Round at 45 Degrees (In.) | 3-1/2 |
| Tubing Square at 90 Degrees (In.) | 4-1/4 x 4-1/4 |
| Tubing Square at 45 Degrees (In.) | 3-1/2 x 3-1/2 |
| Tubing Rectangle at 90 Degrees (In.) | 5-1/2 x 3-3/4 |
| Tubing Rectangle at 45 Degrees (In.) | 3-1/2 x 3-1/2 |
| Cutting Capacity Solid (In.) | |
| Solid Round at 90 Degrees (In.) | 2 |
| Solid Round at 45 Degrees (In.) | 1-3/4 |
| Solid Square at 90 Degrees (In.) | 2 x 2 |
| Solid Square at 45 Degrees (In.) | 1-3/4 x 1-3/4 |
| Solid Rectangle at 90 Degrees (In.) | 2 x 2 |
| Solid Rectangle at 45 Degrees (In.) | 1-3/4 x 1-3/4 |
