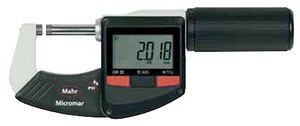

Mahr Micromar 40 EWR-L Digital Micrometer w/MarConnect Output, 1"-2"/25mm-50mm - 4157021
Brand: Mahr- SKU:
- 4157021
- ID:
- 354455
Error Limit | 2 µm |
$593.00
Mahr Micromar 40 EWR-L Digital Micrometer w/MarConnect Output, 1"-2"/25mm-50mm - 4157020
- With Quick Drive Spindle & Wired MarConnect Output
- Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
- Ideal for measuring thin metal foils without twisting and bending them
- Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle
RESET (set display to zero), ABS (display can be set to zero without losing reference to ORIGIN), mm/inch, ORIGIN (for entering a numerical value), LOCK function (key lock), TOL (tolerance and warning limits), HOLD (storage of measured values), DATA (data transmission), Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)
- MarConnect (bidirectional), USB, Digimatic
- High contrast analog display
- Resolution: 0.00005" / 0.001mm
- Spindle Thread Pitch: 0.5mm
- Measuring Force: 5N - 10N
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Sliding Spinde
- Quick drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
- Battery life approx. 3 years (approx. 0.5 in wireless mode)
