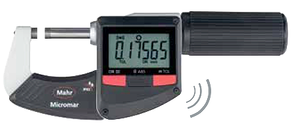

Mahr Micromar 40 EWRi-L Wireless Digital Micrometer, Range 3"-4"/75-100mm - 4157123

Brand:   Mahr
SKU:
4157123
ID:
354448
Error Limit 3 µm
$737.00
Current Stock:
Adding to cart… The item has been added

Mahr

Mahr Micromar 40 EWRi-L Wireless Digital Micrometer, Range 3"-4"/75-100mm - 4157121

Wireless data transmission capability is integrated within the Micromar 40 EWRi-L digital micrometer with a Quick Drive Spindle where 1 turn of the thimble is now equal to 5 mm (0.2 in) of spindle travel. Moving to different sizes on a sample part is now 10 times faster than with a standard micrometer.

Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
Ideal for measuring thin metal foils without twisting and bending them
Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle

RESET (set display to zero), ABS (display can be set to zero without losing reference to ORIGIN), mm/inch, ORIGIN (for entering a numerical value), LOCK function (key lock), TOL (tolerance and warning limits), HOLD (storage of measured values), DATA (data transmission via connection cable), Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)

  • High contrast analog display
  • Resolution: 0.00005”/0.001mm
  • Spindle Thread Pitch: 0.5mm
  • Measuring Force: 5N - 10N
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • QUICK DRIVE
  • Sliding spindle
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
  • Data interface Integrated wireless
  • Battery life approx. 2 years (approx. 0.5 in wireless mode)
