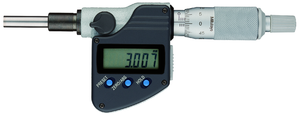

Mitutoyo Digital Micrometer Head, 0-25mm - 350-251-30
Brand: Mitutoyo| Range | 0 - 25 mm |
| Stem | Plain |
| Spindle Face | Flat (carbide tip) |
| Stem Dia. | 10mm |
$353.00
Mitutoyo Digital Micrometer Head, 0-25mm - 350-251-30
This Micrometer Head has a 25 mm range and a 10 mm stem, and offers the following benefits:
- You can integrate it into machinery and measuring instruments.
- Measurement values are clearly displayed in 0.001mm increments.
- Stem diameter: 10 mm.
Specifications
| Range | 0 - 25 mm |
| Spindle end | Flat (carbide tip) |
| Stem | Plain |
| Stem Ø | 10 mm |
| Mass | 230 g |
| Measuring spindle | With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm |
| Maximum Permissible Error J MPE | ±2 µm |
| Power supply | Battery SR-44 |
| Digital step | 0,001 mm |
| Display | LCD character height 7.5 mm |
| Battery life | approx. 2,4 years |
| ZERO/ABS | Yes |
| Auto Power OFF after 20 min. non use | Yes |
| 2 x PRESET | Yes |
| Data output | Yes |
| HOLD | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Metric |
