Niko Mini-Bore™ S-SWUCR Miniature Boring Bars
- Miniature boring bar for boring, internal facing and turning.
- Style: SSWUC_
- All boring bars have coolant through capability.
- Can be used with or without coolant.
- Accepts ANSI/ISO Standard WCMT Inserts
- Use Insert #: WCMT1.21_
- Inserts Not Included.
- 93° Approach Angle
- Overall Length: 4"
- Right Hand
- Very popular style
- Use Torx Screw #: VT 20
- Use Torx Wrench #: T-06

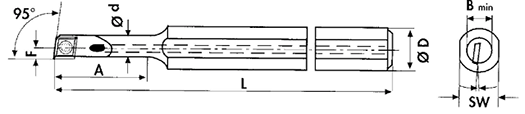

| Item No. | Shank Dia. ØD | Neck Dia. ØD | F | Min. Bore B | A | Shank Width SW |
| 24-285-920 | 5/16" | .197" | .114" | .228" | .710" | .275" |
| 24-285-922 | 5/16" | .236" | .153" | .307" | .950" | .275" |
