Phase II Digital Rockwell Hardness Tester w/ Touchscreen - 900-415
Brand: Phase II- SKU:
- 900-415
- ID:
- 327178
$7,014.20

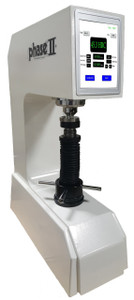

Phase II Digital Rockwell Hardness Tester w/ Touchscreen
900-415
Load Cell, Closed Loop, Rockwell Hardness Tester!
Cast Iron Body! w/ Touch Screen Functions
This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to flash drive. The 900-415 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell hardness scales.
Features:
- Direct Loading Method With Load-Cell Instead Of Dead Weight System.
- High Speed Test Cycle and Extremely Accurate Loading Control
- Automatic conversions to HB, HV, Superficial Rockwell Scales
- Touch Screen selectable system
- Upper/Lower Limit Settings
Accessories Included:
- C-scale Diamond Indenter
- 1/16" Ball Indenter
- 3- HRC test Blocks
- 1- HRB Test Block
- 1-HRA Test Block
- Test Table 5.87" (150mm)
- Flat Anvil 2.5" (63mm)
- Std. V- Anvil
- Dust Cover
- Accessory Case
Options:
- NIST/ASTM certified test blocks, penetrators and kits are available.
Specifications:
| Minor Load | 10 Kgf |
| Major Load | 60 Kgf, 100 Kgf, 150 KGF |
| Test Force Application | Load Cell Closed Loop |
| Test Force Control | Motorized |
| Results Display | Hi Def LCD Digital Readout |
| Resolution | 0.01HR |
| Vertical Capacity | 8.0" |
| Throat Depth | 7.8" |
| Height | 22" |
| Width | 8" |
| Depth | 31" |
| Weight | 175 lbs |
| Test resolution | 0.01HR Rockwell unit |
| Operation temperature | 50° - 95°F (10ᵒC～35ᵒC) |
| Ambient environment | clean, no vibration, no strong magnetic field, and no corrosive medium; |
| Power supply | single phase, AC, 110-220 with manual change, 50～60Hz, 4A; |
