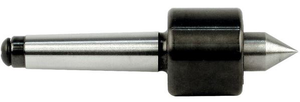

Phase Precision Heavy Duty Live Centers
- The rotating spindle is extended right through the tapered shank.
- Create less thermal friction when turning
- Two specially designed adjustable needle-roller bearings carry all radial loads.
- A heavy duty ball thrust bearing takes all axial thrust.
- Thermal expansion and shock loads are absorbed by a special compensator spring.
- Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil seal, which also prevents loss of lubricant.
- Center Point Angle: 60º
| Item No. | Center Dia. | Body Dia. | Body Length |
| 69-201-011 | 7/8" | 1-1/2" | 5" |
| 69-201-012 | 1-1/8" | 1-7/8" | 6-1/4" |
| 69-201-013 | 1-1/2" | 2-3/16" | 7-1/2" |
| 69-201-014 | 1-3/4" | 2-3/4" | 9-1/2" |
