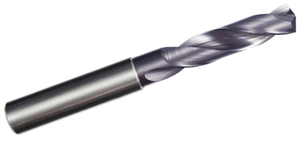

Rushmore USA Solid Carbide 3XD AlTiN Drills, Non-Coolant & Coolant Through
Installed K-land eliminates the need to hone this tool.
Excellent self-centering capabilities and produces holes with very little in the way of either top-side or egress burrs.
Consistent high-performing drill for a variety of materials.
Excellent broad application drill.
Cutting Direction: Right Hand.
Hole Depth: 3XD
2 flutes.
Flute Shape: Standard Spiral, Helical Flute
Common plain shank.
Supplied with K-land.
30° helix.
140° Drill Point
Modified 4-facet with a CNC-driven S-gash.
Tolerance_Overall Length: +/-.060"
Tolerance_Shank Diameter: +.0000" / -.0003"
Drill Point Angle: 140°
Use on: Hardened, Cast Iron, Titanium, Non-Ferrous, Stainless Steel & Steel
0.2362"
0.2362"
Item No.
Shank Diameter
Flute Length
Overall length
20-141-053
0.2362"
0.787"
2.44"
20-141-059
0.2362"
0.787"
2.44"
20-141-064
0.2362"
0.944"
2.59"
20-141-077
0.2362"
1.102"
2.59"
20-141-082
0.2362"
1.102"
2.59"
20-141-088
0.2362"
1.102"
2.59"
20-141-095
0.2362"
1.102"
2.59"
20-141-100
0.315"
1.338"
3.11"
20-141-105
0.315"
1.338"
3.11"
20-141-122
0.315"
1.614"
3.11"
20-141-134
0.3937"
1.85"
3.5"
20-141-146
0.3937"
1.85"
3.5"
20-141-167
0.4724
2.165"
4.01"
20-141-182
0.5512"
2.362"
4.21"
20-143-059
0.2362"
0.787"
2.44"
20-143-064
0.2362"
0.944"
2.59"
20-143-077
0.2362"
1.102"
2.59"
20-143-082
0.2362"
1.102"
2.59"
20-143-088
0.2362"
1.102"
2.59"
20-143-095
0.2362"
1.102"
2.59"
20-143-100
0.315"
1.338"
3.11"
20-143-105
0.315"
1.338"
3.11"
20-143-122
0.315"
1.614"
3.11"
20-143-134
0.3937"
1.85"
3.5"
20-143-146
0.3937"
1.85"
3.5"
20-143-167
0.4724"
2.165"
4.01"
20-143-182
0.5512"
2.362"
4.21"
