Scotchman 50-ton Ironworker - 5014-ET

Brand:   Scotchman
SKU:
5014-ET
ID:
318747
$20,995.00
Current Stock:
Adding to cart… The item has been added

Scotchman

Scotchman 50-ton Ironworker - 5014-ET

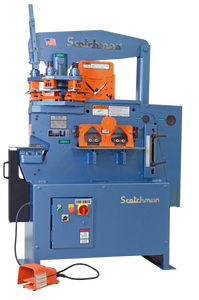

The 5014 ET from Scotchman Industries is the world’s first and only 50-ton hydraulic ironworker with a 3-station turret. The innovative revolving turret accepts up to three different punch sizes that can be changed in seconds reducing set-up time and increasing productivity making the Scotchman 5014 ET ironworker the most versatile and efficient ironworker on the market. This hydraulic ironworker features 50 tons of pressure and has the ability to punch a 13/16″ hole in a 3/4″ plate and comes standard with an angle shear, 14” flat bar shear, and rectangle notcher. The 5014 ET ironworker is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.


Standard Features:

  • Single Operator, 7 Stations
  • 50 Ton Punch Station with 3-Station Revolving Turret (1-1/4" in 1/2" and 13/16" in 3/4")
  • Keyed Punch Ram for Safety
  • 4" Throat Depth
  • Three 2" Die Holders, Three Punch Nuts with Wrench and Three Strippers
  • One Round Punch & Die: Max. Dia. 1"
  • Adjustable Electric Stroke Control with Scale
  • Electric Remote Foot Pedal
  • Angle Shear 4" x 4" x 3/8" at 90° and 2" x 2" x 3/8" at 45°
  • 14" Flat Bar Shear with 4-Way Reversible Blade (3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14")
  • Rectangular Notcher, 2-1/2" x 3" x 5/16" , 2-1/2" x 2-3/4" x 3/8"
  • Tool Table Work Area
  • Slug Receptacle
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • 230/460 volt /3 Phase Electrics (must specify voltage)
  • All Guards Necessary to Comply with ANSI B 11-5 Standards
  • Forklift Accommodations
  • Warranty: Three Years on Parts
  • Made in USA


Specifications:

Rated on: 65,000 PSI Tensile A 36 Mild Steel
Punching Capacity 50 ton
1-1/4" in 1/2"
13/16" in 3/4"
45 mt
32 mm in 12 mm
21 mm in 18 mm
Special Tooling 2-1/4" Max. Dia. 57 mm Max. Dia.
Throat Depth 4" 100 mm
Flat Bar Shear 14" Length
3/4" x 4"
1/2" x 8"
3/8" x 10"
1/4" x 14"
350 mm
18 mm x 100 mm
12 mm x 200 mm
10 mm x 250 mm
6 mm x 350 mm
Opt. Saber Blade 1/2" x 10"
3/8" x 12"
12 mm x 250 mm
10 mm x 300 mm
Angle Shear 90° 4" x 4" x 3/8" 100 mm x 100 mm x 10 mm
Angle Shear 45° 2" x 2" x 3/8" 50 mm x 50 mm x 10 mm
Brake 8" 25 ton 23 mt
Brake 12" 25 ton 23 mt
Open End Brake Max. 1/4" x 3"
Flat or Angle Iron
(6 x 76 mm)
Pipe Notcher
Schedule 40 I.D.
3/4"
1"
1-1/4"
1-1/2"
2"
19 mm
25 mm
32 mm
38 mm
50 mm
Rectangle Notcher 2-1/2" x 3" x 5/16"
2-1/2" x 2-3/4" x 3/8"
62 mm x 75 mm x 8 mm
62 mm x 69 mm x 10 mm
90° V. Notcher 6" x 6" x 1/8"
3" x 3" x 1/4"
150 mm x 150 mm x 3 mm
75 mm x 75 mm x 6 mm
Strut Shear Samples Required
Rod Shear
Round Rod (Max.)




Square Rod (Max.)
1/4" to 1"
5 Cavity
7/16", 9/16"
5/8", 3/4", 1"


1/4" to 3/4"
1 Cavity
3/4"
6 mm to 25 mm

11 mm, 14 mm
16 mm, 19 mm, 25 mm


6 mm to 19 mm

19 mm
Square Tube Shear 1/2" to 1"
12 ga.
12 mm to 25 mm
2.75 mm
Picket Tool 1/2"
3/4"
1"
16 gauge
12 mm
19 mm
25 mm
1.6 mm
Strokes Per Minute in Light
Material [Punch Station]
1/4" stroke 40 spm
Strokes Per Minute in Heavy
Material [Punch Station]
3/4" stroke 17 spm
Hydraulics 2100 psi 145 bar
Motors Standard 3 hp 3 ph
230/460
208/380/575
2.24 kW
Motors Optional 5 hp 1 ph
220v
3.73 kW
Dimensions W-23"
L-48"
H-70"
W-59 cm
L-122 cm
H-178 cm
Shipping Weight 1,580 lbs 717 kg
