Starrett Dial Test Indicator B708AZ #64607, 0.01" Range, 0-5-0 Dial Reading, 0.0001" Graduation, 1-3/8" Dial Diameter, Black Dial - 11-898-4
Brand: Starrett- SKU:
- 11-898-4
- ID:
- 107110
| Range | 0.01" |
| Dial Reading | 0-5-0 |
| Graduation | 0.0001" |
| Dial Diameter | 1-3/8" |
| Dial Color | Black |
$509.95

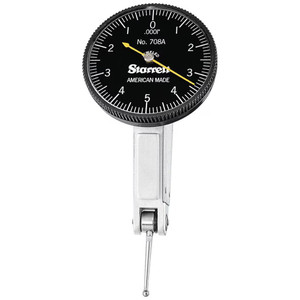

Starrett Dial Test Indicator B708AZ #64607, 0.01" Range, 0-5-0 Dial Reading, 0.0001" Graduation, 1-3/8" Dial Diameter, Black Dial
Manufacturer Part #: 64607
The Starrett 708 Dial Test Indicator with Dovetail Mount offers an easy to read angled head and the flexibility of three dovetail mounts. mounts.
Features:
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Meet or exceed ISO accuracy specification
- Inch reading indicators are available with easy-to-read, shaded white, red, or black dials – millimeter reading indicators with yellow dials
- Angled head for better reading position
- Narrow body for in reach ability
- Satin chrome finish for durability
- Large 1-3/8" (35mm) dial diameter
- Include long carbide contacts 13/16" (20mm)
Specifications:
| Maximum Measurement (Decimal Inch) | 0.01 |
| Dial Reading | 0-5-0 |
| Indicator Style | Horizontal |
| Bearing Type | Jeweled |
| Dial Diameter (Inch) | 1-3/8 |
| Dial Color | Black |
| Dial Graduation (Decimal Inch) | 0.0001 |
| Standards | ISO; California PROP 65 |
| Mount Type | Dovetail |
| Attachments | No |
| Number of Contact Points Included | 1 |
| Features | Precision Gear-Driven Design; Jeweled Movement; Satin Chrome Finish; Dovetail Mount; Adjustable Contact; Angled Head; Durable; Replaceable Contact; Narrow Body; Revolution Count Hand |
| Contact Point Length (mm) | 20.64 |
| Contact Point Length (Inch) | 13/16 |
| Ball Diameter (mm) | 2 |
| Ball Diameter (Decimal Inch) | 0.078 |
| Range Per Revolution (Decimal Inch) | 0.01 |
| Style | Horizontal |
| Contents | 13/16 in (20 mm) Long Carbide Contact |
| UNSPSC Code | 41111630 |
| Country of Origin | UNITED STATES |
