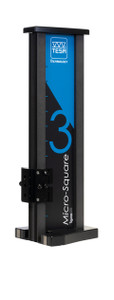

TESA MICRO-SQUARE Sets 31,
- The TESA MICRO-SQUARE is the ultimate perpendicularity measuring instrument for professionals looking for the highest precision.
- The slide is mounted on a high-precision guideway and ensures a movement guaranteeing a measurement repeatability of 0,5 μm.
- This mechanism combined with the GT 31 inductive probe and the TWIN-T10 display unit allows the result to be displayed quickly.
- It is therefore the ideal complement to our famous height gauges for the most precise controls.
- High precision (1,5 μm for 350 version)
- Quick measurement
- Usable in the workshop
- Simple handling
- TESA inductive lever test indicators TESA GT 31 with Ø 2 mm measuring insert, 03210802*
- Portable probe display unit TESA TWIN-T10, 04430013* SCS calibration certificate
- Repeatability [μm]: 0,5 Measuring application with GT21 probe and TESATRONIC at 20°C
- Width: 140mm
- Depth: 167mm
- User manual SCS calibration certificate
Sets Include:
04430013: TWIN-T10 display
03210802: GT31 probe, ± 0,3 mm, F = 0,1 N
