FLEXBAR MACRO-ZOOM BASIC VIDEO INSPECTION SYSTEMS with TABLE CLAMP
For Inspection Of Small & Large Parts Requiring Longer Working Distances (2.5" & up)
Using A Wide Field of View Macro-Zoom Lens.
Provides Up To 80X Electro-Optical Magnification*
COMPLETE SYSTEM PACKAGES NOW AVAILABLE TO MEET A WIDE RANGE OF INSPECTION AND MEASUREMENT REQUIREMENTS.
This versatile system was designed with large part and circuit PCB inspection in mind. Working distances are adjustable from 4" to 16". Magnification range based on zoom and working distance is 4.5x to 80x. The field of view is adjustable from .25" to 4".
Macro-Zoom Lens and HDMI Camera are mounted on Heavy Duty Boom Stand incorporating a Focus Block Positioner. System workstations available with either a Granite Base or Table Mount Clamp with a 2.125" capacity.
- Vertical Post: 1.40" dia. x 16" H
- Horizontal Travel: 12"
- Manually adjustable with secure locking mechanism

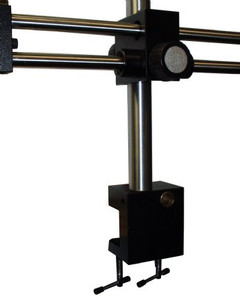

A table clamp boom stand video inspection system.
Zoom lens and camera allow a sharp image
View of 2.5†field at 4x mag-- to .175 field at 60x mag.
