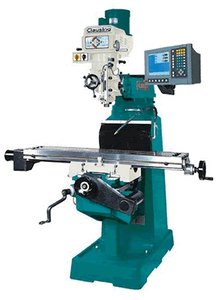

Clausing ATLAS CNC Vertical Mill w/ACU-RITE Mill Power Control - 2VSCNC
Brand: Clausing- SKU:
- 2VSCNC
- ID:
- 173888
$0.00
Clausing ATLAS CNC Vertical Mill w/ACU-RITE Mill Power Control
Overview
- Manual Operation with DRO
- Semi-Automatic Operation
- X and Y Axis CNC Operation
Features:
- Meehanite Castings for superior rigidity
- Infinitely Variable Spindle Speeds (60-4300 rpm)
- Hardened & Ground Ways
- Column & Knee Way Covers
- Ground T-slots to provide reference edge for positioning workpiece
- Hardened & Ground Table Surface
- Hardened & Ground Spindle
- Chromed & Ground Quill
- Ground Ball Screws & Chromed Motor Shaft
- ABEC 7/CP4 Spindle Bearings
- Coolant System w/Pump & Switch
- Chromed Cross Feed Screw Covers and One-piece Wiper
- Flexible Segmented Coolant Nozzle
- Articulating Head for Compound Angles
- Worm gear angular positioning of head in two directions
- Handwheel fine quill feed
- Lever-operated manual rapid quill movement
- Adjustable automatic feed disengagement for quill feed in both directions
- Reversing switch for clockwise or counter clockwise operation
- Spindle Brake (Hand operated)
- One-shot lubrication
- Mini Electrical Box for Coolant and Mains
- Tool Kit, Test and Accuracy Chart
- Operations Manual/Parts List
Optional Accessories:
- Chip Tray
- Full Electrics*
- Slotting Attachment
- Air PWR Drawbar #8 & #30*
- Air PWR Drawbar #40*
- Electric Drawbar*
- 52 Piece Clamping Kit
- Milling Chuck kit W/7 Collets
- Horizontal Milling Attachment
- AC Rapid Vertical Drive (4VSQ)*
- 4" Riser Block (2VS)
- 6" Riser Block (2VS)
- 8" Riser Block (All Models)
* Factory Installed only
Specifications:
Models | 2VSCNC |
Table & Ways | |
Table Size | 9" x 49" |
No. of T-Slots | 3 |
T-Slot Width | .63" (16mm) |
T-Slot Center Distance | 2.48" (63mm) |
Table Ways | Dovetail |
Knee Ways | Dovetail |
Column Ways | Dovetail |
Travels | |
X Longitudinal | 30" (762mm) |
Y Cross | 11.5" (292mm) |
Knee | 16" (406mm) |
Ram | 18.5" (470mm) |
Motors & Spindle | |
Motor HP Variable | 3 (2.2Kw) |
Variable Spindle Speed RPM | |
Low Range | 60-500 |
High Range | 550-4300 |
Main Spindle Taper | R-8 or ISO-30 |
Spindle Travel | 5" (127mm) |
Quill Feed/Spindle Rev. | 0015/.003/.006in/rev. (.004/.008/.015mm/rev |
Quill Diameter | 3.38" (127mm) |
Construction | |
Column Turret Diameter | 14.96" (380mm) |
Knee Width | 11.81" (300mm) |
Column Bearing Length | 16.83" (427mm) |
Saddle/Table Bearing Length | 19.88" (305mm) |
Ram/Turret Bearing Length | 17.51" (445mm) |
Ram Length | 32.75" (832mm) |
Table Load | 700 lbs. (316kg) |
Net Weight | 2250 lbs. (1020kg) |
