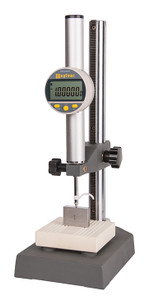

Fowler/Sylvac High Accuracy Inspection Set - 54-618-580

Fowler/Sylvac High Accuracy Inspection Set - 54-618-580

Indicator features (54-530-700-0):

• Resolution 0.000005"/0.0001mm
• Repeatability 0.00001"/0.0002mm
• Accuracy 0.00006"/0.0015mm
• 2"/50mm measuring range
• IP54 rated
• Includes spindle lifting attachment
• Mixed ceramic bearing/ball bearing system
• 8mm mounting diameter

Dial Stand features (54-618-578-0):

• Ceramic measuring surface provides durablity and micro flatness
• Serrated working surface for stability and accuracy
• Rack and pinion measuring column for fine measurements
• Working area 4" x 4"/100 x 100mm
• Flatness 0.00015"
• Measuring range 8"/200mm
