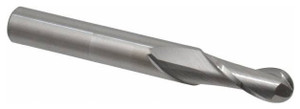

Atrax 2-Flute Centercutting Ball Single End Mill, 9/32" Mill Dia., 5/16" Shank Dia., 3/4" LOC - 45-524-6

Brand:   Atrax
SKU:
45-524-6
ID:
109986
Mill Diameter 9/32"
Shank Diameter 5/16"
Length of Cut 3/4"
Overall Length 2-1/2"
callling
$41.02
Current Stock:
Adding to cart… The item has been added

Atrax

Atrax 2-Flute Centercutting Ball Single End Mill
9/32" Mill Dia., 5/16" Shank Dia., 3/4" LOC


30° Helix


Features and Benefits:

  • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
  • Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Tolerances: Size Tolerance
Shank Dia. All Sizes +.000/-.0005"
Cutting Dia. 1/32 - 1/4" +.000/-.002"
9/32 - 1" +.000/-.003"



Specifications:

Mill Diameter (Inch) 9/32
Mill Diameter (Decimal Inch) 0.2813
Number of Flutes 2
Length of Cut (Inch) 3/4
Length of Cut (Decimal Inch) 0.7500
Material Solid Carbide
Overall Length (Inch) 2-1/2
Shank Diameter (Inch) 5/16
Finish/Coating Uncoated
Single or Double End Single
Material Grade Micrograin
Helix Angle 30.00
Cutting Direction Right Hand
Flute Direction Right Hand



See all Atrax 2-Flute Centercutting Ball Single End Mills
