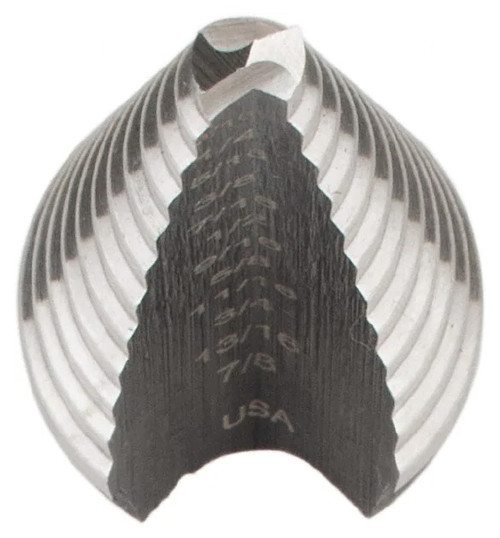

IRWIN Unibit Self-Starting Step Drill #10234, HSS, 12 Hole Sizes, 3/16 to 7/8" Hole Dia. - 54-322-3
Brand: IRWIN- SKU:
- 54-322-3
- ID:
- 98943
| Model | 10234 |
| Material | HSS |
| Hole Sizes | 12 |
| Size Range | 3/16 - 7/8" |
| Step Length | 1/8" |
| Step Increments | 1/16" |
| Shank Dia. | 3/8" |
$84.95
IRWIN Unibit Self-Starting Step Drill #10234, HSS, 12 Hole Sizes, 3/16 to 7/8" Hole Dia.
High Speed Steel Speedpoint Step Drill Bit
1/8" Step Length, 3/8" Hex Shank, Bright Finish
Features:
- Multiple Hole Sizes UNIBIT Step Drills have an exclusive single radial concave flute.
- Allows the drilling of perfectly round holes in thin materials quickly and with less effort.
- Each bit is constructed of industrial grade high speed molybdenum steel, and is heat treated to a hardness of between 61 and 63 on the Rockwell "C" scale. This assures maximum strength and long life.
- Use for steel, copper, brass, aluminum and other thin materials.
- Also ideal for drilling through wood, composition board, and even plexiglass and plastics which often crack with standard twist drills.
- Handle thicker materials by drilling from both sides of work surface.
- Use for reaming, deburring and cutting through soft wood or plasterboard.
Specifications:
| Manufacturer Part # | 10234 |
| Minimum Hole Diameter (Inch) | 3/16 |
| Maximum Hole Diameter (Inch) | 7/8 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Number of Hole Sizes | 12 |
| Shank Type | Hex |
| Shank Diameter (Inch) | 3/8 |
| Step Length (Inch) | 1/8 |
| Hole Diameter (Inch) | 3/16 to 7/8 |
| Point Type | Speedpoint |
| Step Increments (Inch) | 1/16 |
| Drill Bit Grade | General Purpose |
